The Shift Light Module (SLM) may be used for shift lights, warning lights or other indicators as programmed by the user.
SLM
It provides eight multicolour LED indicator lights in a compact array. The colour, intensity and purpose of each LED can be controlled independently, providing enormous flexibility and scope for customization. 8 full colour (RGB) LEDs.
A set of patterns can be defined with various colour combinations and flashing modes, indicating for example: stop immediately, continue with caution, pit lane speed limiter active and of course, up-shift and down-shift. The LEDs can be programmed in a priority order so that, for example, a warning light can override a shift light.
The SLM is configured and controlled using a MoTeC ECU, display or data logger. Compatible MoTeC devices have special programming functions for the SLM. The module is connected via CAN eliminating the need to use auxiliary outputs.
Compatibility:
C1 Series Displays, SDL3, ADL3
L1 Series Loggers, ACL (software version V1.10F2 and later)
M1 Series ECUs, M400, M600, M800, M880 (software version V3.41G and later), M84
*Also used for the Porsche 991.2 GT3 Cup Oil Level Sensor

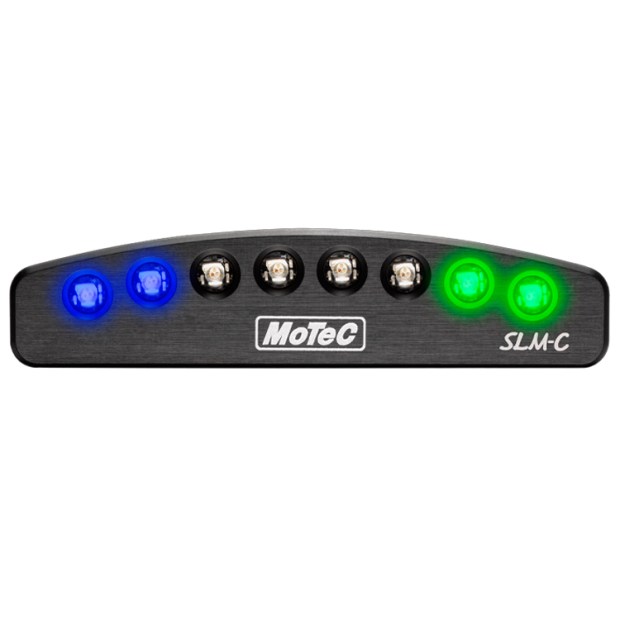

SLM-Club
The Club Shift Light Module (SLM-C) provides eight fixed colour LED indicator lights in a compact array. The lights are arranged in a pre-defined shift light pattern. The colour intensity of the LEDs can be set to your preference. 8 colour (RGB) LEDs
The SLM-C is connected via CAN eliminating the need to use auxiliary outputs.
Compatibility:
C1 Series Displays, Any MoTeC Dash Logger
L1 Series Loggers
M84 and “Hundred Series” ECUs: M400, M600, M800, M880
