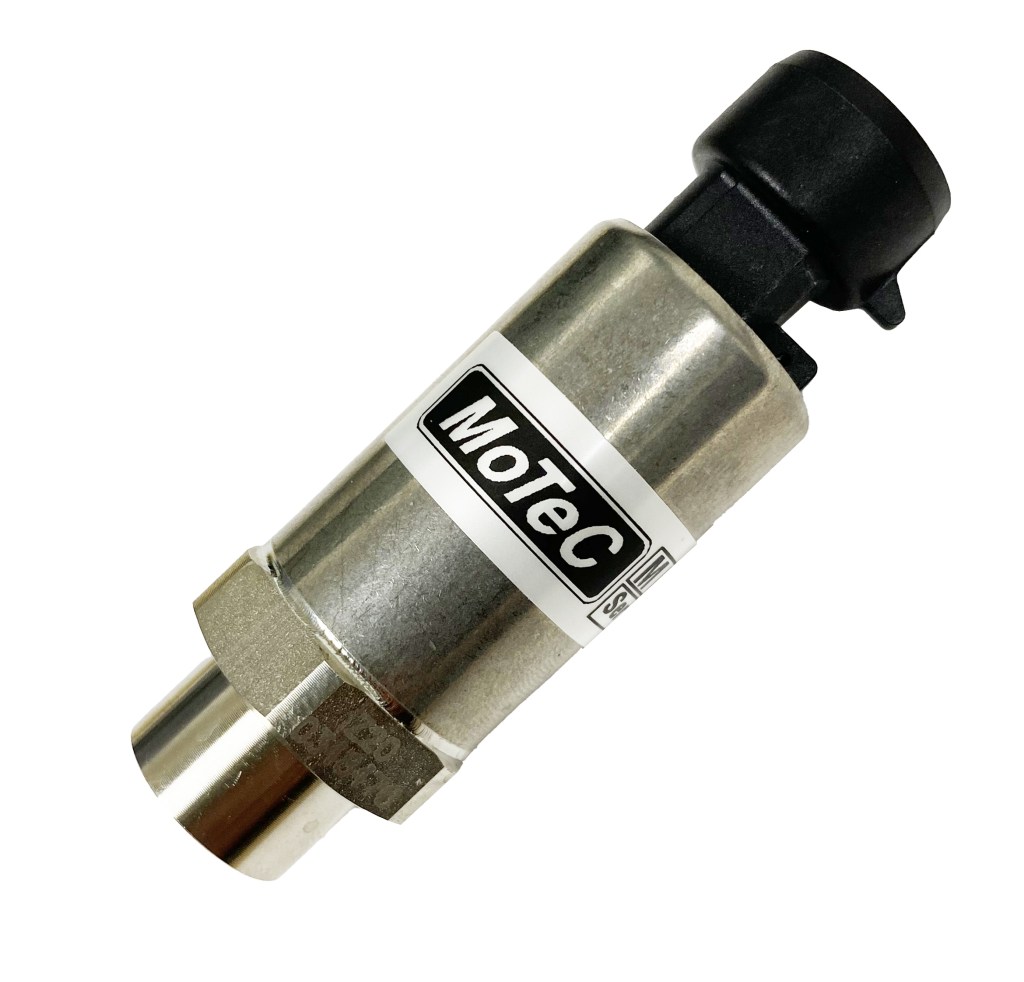

Pressure Sensors

Part #:                   Range:
M KP45 75A          75 PSI Absolute
M KP41 100G        100 PSI Gauge
M KP41 150G        150 PSI Gauge
M KP41 300G        300 PSI Gauge
M KP41 1000G      1000 PSI Gauge
M KP41 2000S      2000 PSI Gauge
M KP41 3000S      3000 PSI Gauge

Calibration:
0.5V = 0 PSI
4.5V = Full Scale Pressure

Specifications:
Fitting: Dash-3 female
Output: 0.5 to 4.5 VDC
Supply: 5 +/- 0.5 VDC
Current: < 10mA
Output Impedance: < 100 Ohm
Temperature Range: -40°C to 125°C
Total Error: 0.8% of F.S. Pres
Proof Pressure: 2 x F.S. Pres
Burst Pressure: 5 x F.S. Pres
Main Seal: welded stainless
Weight: 70 grams

Note: Sensor should be mounted remotely to avoid engine vibration damage
