MoTeC Power Distribution Modules (PDM) are designed to replace conventional relays, fuses and circuit breakers, simplifying wiring and reducing weight while increasing reliability.

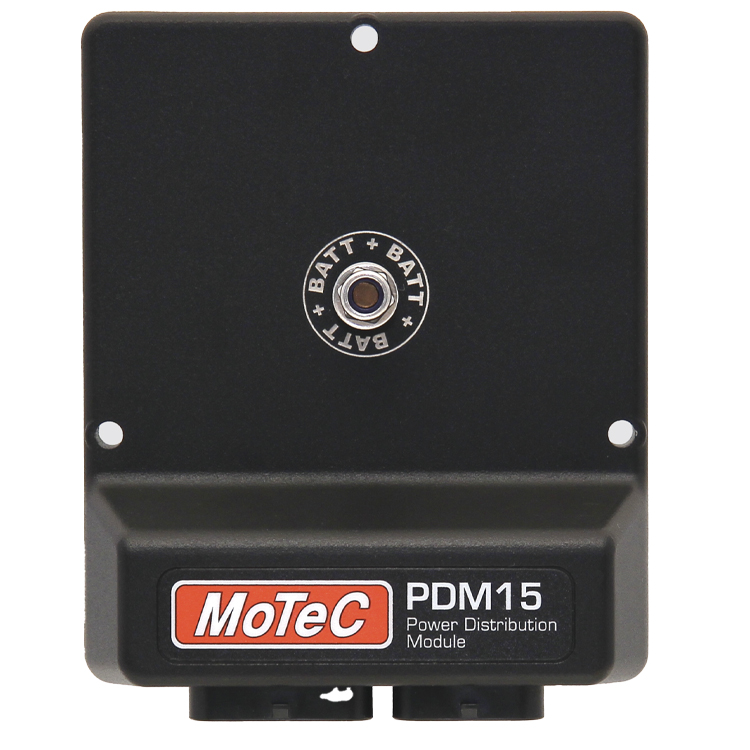

PDM15
1 Configurable CAN
Connector 1: AMP 34pin
Connector 2: AMP 27pin
M6 Main Power Stud
Diagnostic Channels:
Output Current & Voltage
Input Voltages
Error Statuses
Features:
16 Switch Inputs
8x 20 Amp Outputs:
^ 20 A continuous, 115 A transient
7x 8 Amp Outputs:
^ 8 8 A continuous, 60 A transient
Options: No

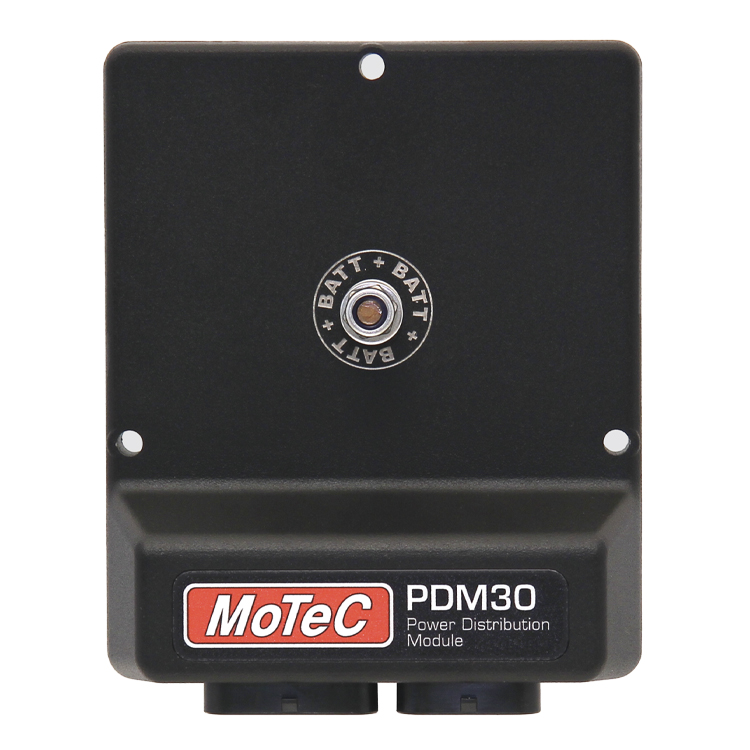

PDM30
1 Configurable CAN
Connector 1: AMP 34pin
Connector 2: AMP 27pin
M6 Main Power Stud
Diagnostic Channels:
Output Current & Voltage
Input Voltages
Error Statuses
Features:
16 Switch Inputs
8x 20 Amp Outputs:
^ 20 A continuous, 115 A transient
22x 8 Amp Outputs:
^ 8 8 A continuous, 60 A transient
Options: No
PDM32
1 Configurable CAN
Connector 1: AS616-26SN
Connector 2: ASHD614-1SN-S25 (Main Power)
Connector 3: AS614-35SN
Connector 4: AS616-08SN
Diagnostic Channels:
Output Current & Voltage
Input Voltages
Error Statuses
Features:
23x Switch Inputs:
^ 0v to 51v, 0.2v resolution
8x 20 Amp Outputs:
^ 20 A continuous, 115 A transient
24x 8 Amp Outputs:
^ 8 A continuous, 60 A transient
Options: No
