Data Loggers & Displays

The complete line up of MoTeC’s current Display & Enclosed Loggers. CAN templates and reverse engineering available for your application.

Note: Device Name is used as Part Number (EDL3, L120, C125, etc..)

C125

5″ Full Color Display
Connector: AMP 34pin
Housing: IP67 rated
Default Logging: 0mb
Sampling: Up to 500hz
2x RS232 Ports
2x configurable CAN

Features:
*6 Analog Inputs
*3 Digital Speed Inputs
*6 Analog Voltage Inputs
*2 Analog Temp Inputs
*1 Composite Video Input
*4 Low Side Outputs
*0.5 Amp Output Limit
3-Axis Accelerometer
* = required I/O upgrade
Options:
Logging Level 1: 120mb
17 Inputs/Outputs
Pro Analysis
T2 Telemetry
USB Logging (USB Version Only)
Display Creator

C185

5″ Full Color Display
Connector: AS620-35SN
Housing: IP67 rated
Default Logging: 0mb
Sampling: Up to 500hz
2x RS232 Ports
2x configurable CAN

Features:
10 (20 w/ Upgrade) Analog Volt Inputs
4 (8 w/ Upgrade) Analog Temp Inputs
4 Digital Inputs
6 Low Side Switched or PWM Outputs
1.0 Amp Output Limit
3-Axis Accelerometer
Options:
Logging Level 1: 120mb
17 Inputs/Outputs
Pro Analysis
T2 Telemetry
USB Logging (USB Version Only)
Display Creator

C127

7″ Full Color Display
Connector: AMP 34pin
Housing: IP67 rated
Default Logging: 0mb
Sampling: Up to 500hz
2x RS232 Ports
2x configurable CAN

C187

7″ Full Color Display
Connector: AS620-35SN
Housing: IP67 rated
Default Logging: 0mb
Sampling: Up to 500hz
2x RS232 Ports
2x configurable CAN

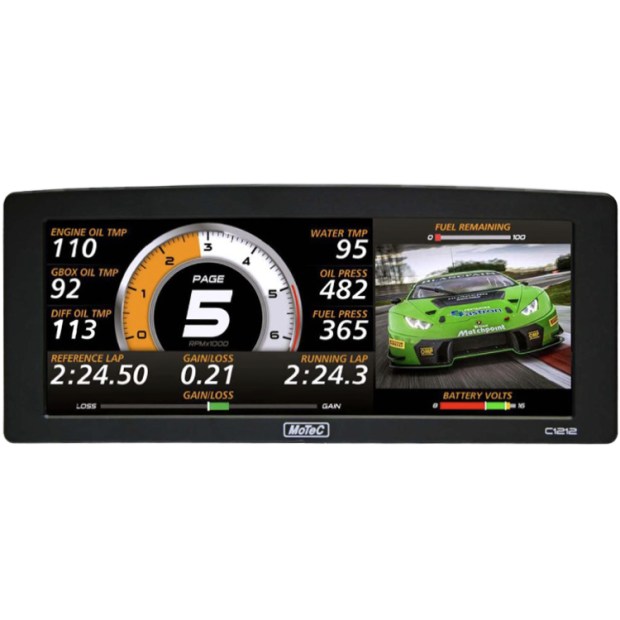

C1212

12″ Full Color Display
Connector: AMP 34pin
Housing: IP67 rated
Default Logging: 0mb
Sampling: Up to 500hz
2x RS232 Ports
2x configurable CAN

C1812

12″ Full Color Display
Connector: AS620-35SN
Housing: IP67 rated
Default Logging: 0mb
Sampling: Up to 500hz
2x RS232 Ports
2x configurable CAN

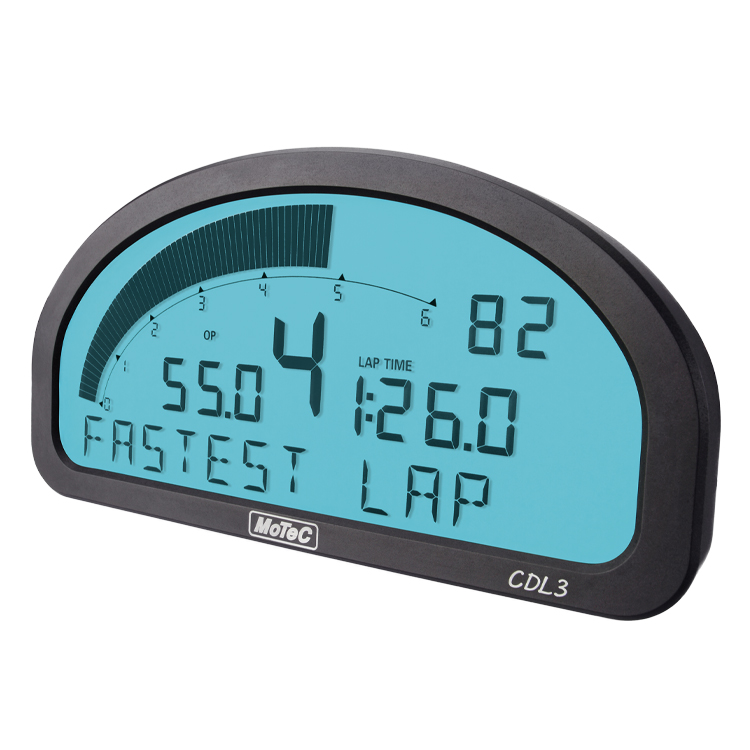

CDL3

Monochrome Display
Connector: AMP 34pin
Housing: IP67 rated
Default Logging: 0mb
Sampling: Up to 500hz
1x RS232 Ports
2x configurable CAN

Features:
4 Analog Voltage Inputs
2 Analog Temp Inputs
2 Digital Inputs
3 Speed Inputs
4 Outputs
3-Axis Accelerometer
Options:
Logging Level 1: 8mb
12 Inputs/Outputs
Pro Analysis

No more display loggers to show… :((

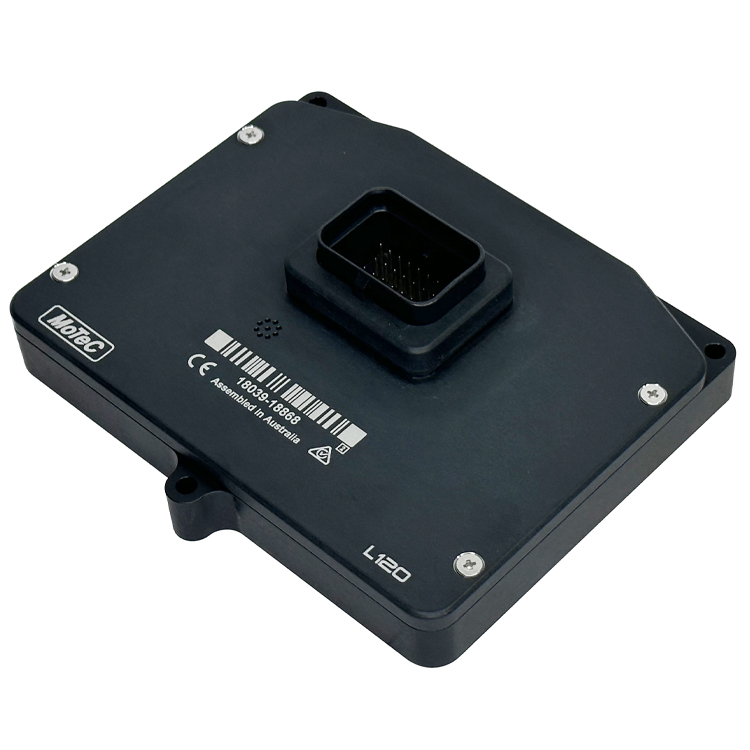

L120

Enclosed Logger
Connector: AMP 34pin
Housing: IP67 rated
Default Logging: 0mb
Sampling: Up to 500hz
2x RS232 Ports
2x configurable CAN

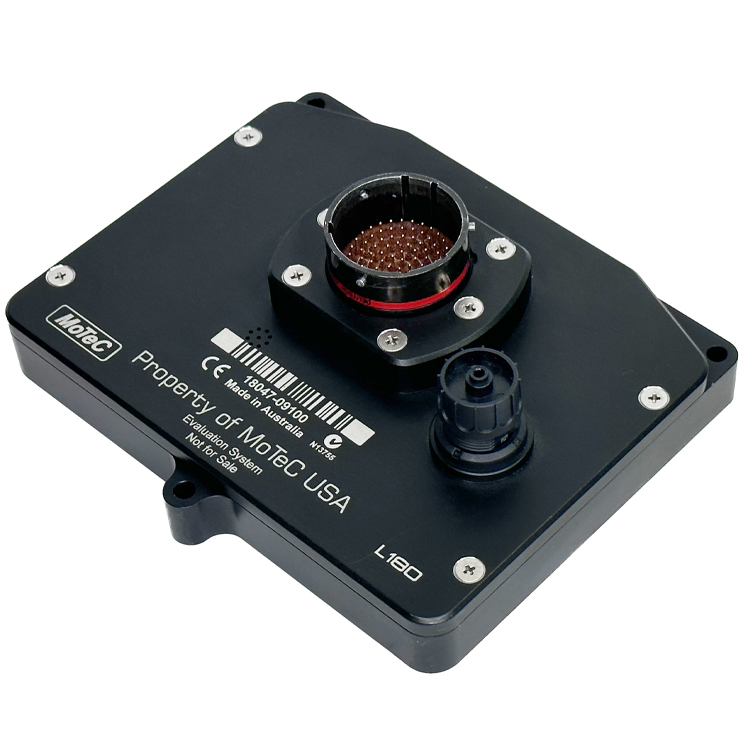

L180

Enclosed Logger
Connector: AS620-35SN
Housing: IP67 rated
Default Logging: 0mb
Sampling: Up to 500hz
2x RS232 Ports
2x configurable CAN

RED	D153	3.5 inch (85mm) Visible Screen: 68 x 51mm	320 x 240 pixels	Flying Lead 19 wire
BLUE	D175	5 inch (125mm) Visible Screen: 107 x 64mm	800 x 480 pixels	Autosport 22 pin
BLUE	C125	5 inch (125mm) Visible Screen: 107 x 64mm	800 x 480 pixels	Tyco 34 pin
BLUE	C185	5 inch (125mm) Visible Screen: 107 x 64mm	800 x 480 pixels	Autosport 79 pin
GRAY	C127	7 inch (176mm) Visible Screen: 152 x 88mm	800 x 480 pixels	Tyco 34 pin
GRAY	C187	7 inch (176mm) Visible Screen: 152 x 88mm	800 x 480 pixels	Autosport 79 pin
LIGHT BLUE	C1212	12 inch (311mm) Visible Screen: 291 x 107mm	1280 x 480 pixels	Tyco 34 pin
LIGHT BLUE	C1812	12 inch (311mm) Visible Screen: 291 x 107mm	1280 x 480 pixels	Autosport 79 pin
