GPS Modules

GPS L10

1 Year Factory Warranty
Connector: 4pin DTM
Communication: RS232
Buad Rate: 34800
Power Supply: 4.0v to 6.0v
Sampling: 10hz
Mounting: Magnetic Base
Size: 48mm x 41mm x 14mm

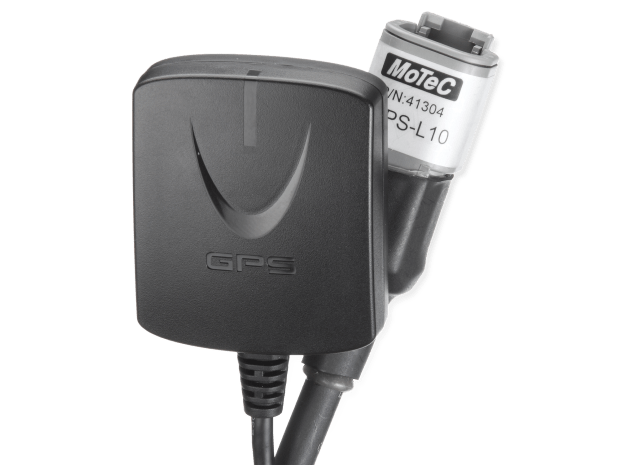

The GPS-L10 is a 10 Hz GPS which combines the electronics and antenna into one small unit. A highly sensitive receiver allows the GPS to lock onto signals even in difficult environments. It is fitted with a DTM connector and is pre-configured to be compatible with MoTeC Dash/Data Loggers. It is not compatible with MoTeC Mx00 ECUs. (See GPS-L5)

This unit is suitable for speed, position and lap timing.
